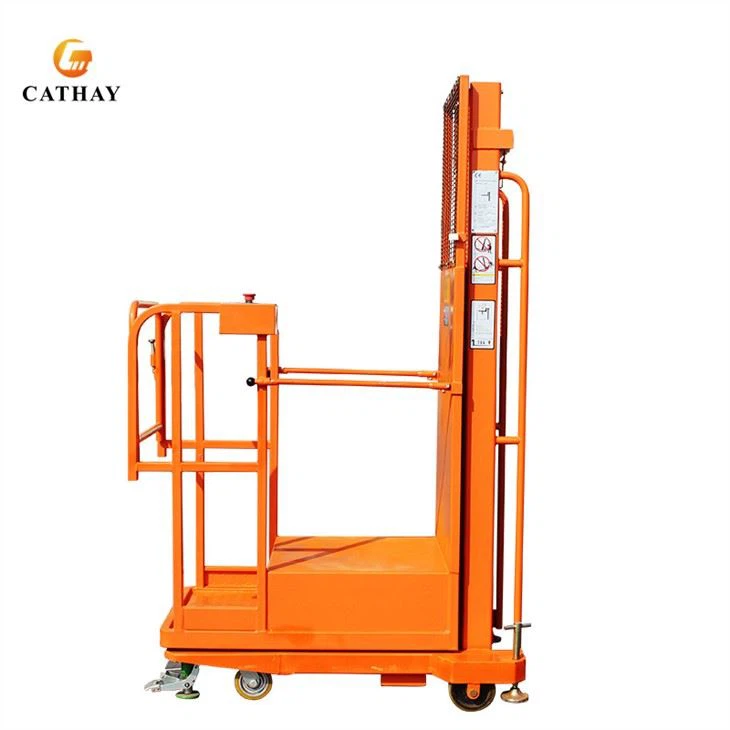

CATHAYLIFT Semi Electric Order Picker, electric lift can load 200kg, lift 2700-4500mm, and the size of the table can be customized. The spacious operating platform of the high-altitude reclaimer and the anti-skid surface of the national standard reflect good stability and ensure smooth operation in the air. And passed CE certification and provincial new product identification, suitable for single-person operation, mainly used for warehouses, workshops, elevator entrances, subway stations and other narrow spaces to pick and place items.
Model Type | Unit | MP-2.7 | MP-3.3 | MP-4.0 | MP-4.5 |
Max.Platform Height | mm | 2700 | 3300 | 4000 | 4500 |
Max.Machine Height | mm | 4020 | 4900 | 5400 | 6100 |
Rated Capacity | kg | 200 | |||
Platform Size | mm | 600*600 | 600*640 | ||
Overall Length | mm | 1300 | 1320 | ||
Overall Width | mm | 850 | |||
Overall Height | mm | 1760 | 2040 | 1830 | 2000 |
Overall Net Weight | kg | 270 | 320 | 380 | 420 |
Products Details
Advantage
●Large-capacity traction battery, convenient and fast charging, long-lasting power.
●Safety explosion-proof valve, the platform will not fall quickly when the hydraulic hose fails, ensuring the personal safety of the operator.
●Electrical control system has sensitive response, easy control and high reliability, and has functions such as regenerative braking, reverse braking and stepless speed regulation.
●Flow motor, gear pump, valve plate and pipeline components are integrated.
●The equipment is small in size, high in reliability, stable in operation, energy saving, noise reduction and environmental protection.
