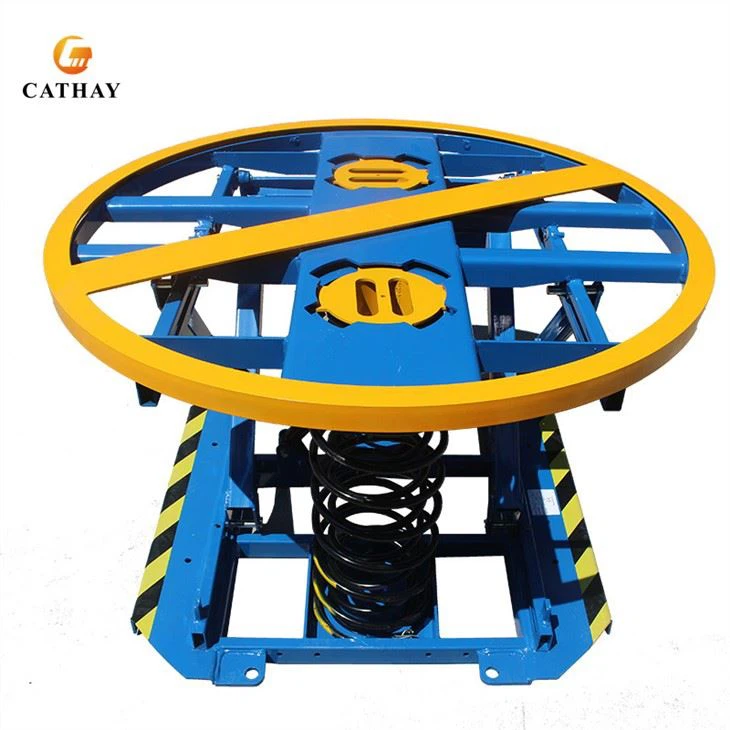

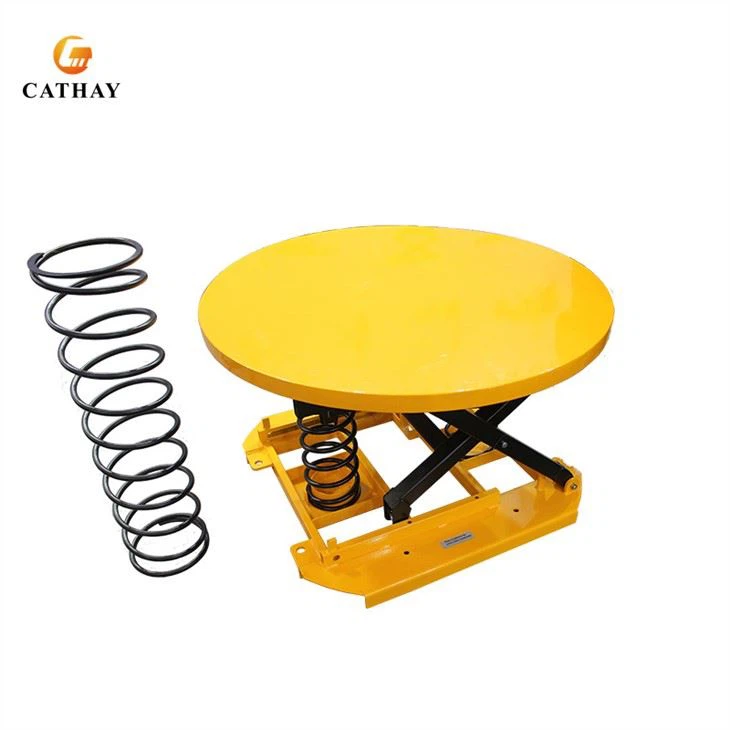

The spring of the CATHAYLIFT pallet lift table increases or decreases according to the weight of the goods, and automatically adjusts the height, so that the loading and unloading operations can always be maintained at a suitable working height. Three types of springs are provided as standard, and the number of springs can be adjusted according to the different weights of the goods to achieve the appropriate working height. The table can be manually rotated 360°, and can be operated in any direction or wrapped in place. The base is equipped with a forklift slot, which can be directly shipped by a forklift or pallet truck. It can customize the organ cover with different shape countertops.
Model | CS2000A | |
Load Capacity | kg | 182-2000kg |
Max. Pallet Size | mm | 1270*1270*1820 |
Base Size | mm | 920*933 |
Lowered Platform Height | mm | 242 |
Max Platform Height | mm | 705 |
Rotary Platform Diameter | mm | 1108 |
Net Weight | kg | 173 |
